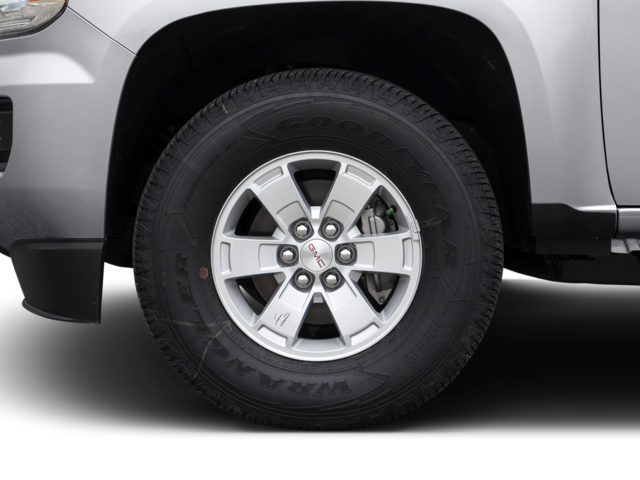

• Wheels, 16" x 7" (40.6 cm x 17.8 cm) Ultra Silver Metallic cast aluminum
• Tires, 265/70R16 all-season, blackwall

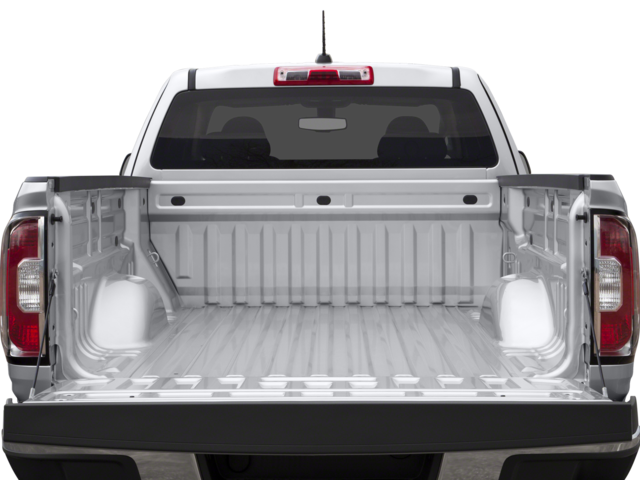

• Pickup box
• Tire, compact spare T175/90D18, blackwall (Requires (RTX) 18" compact spare wheel.)
• Bumper, rear Chrome
• CornerStep, rear bumper
• Mouldings, Black beltline

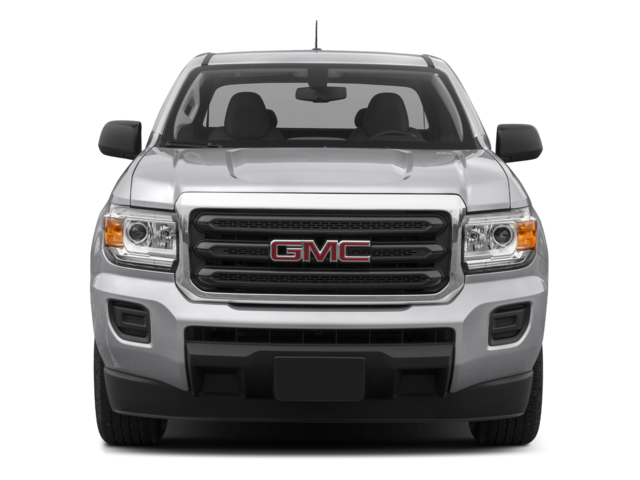

• Headlamps, projector-type with LED signature
• Lamps, cargo area cab mounted with switch on center switch bank
• Mirrors, outside manual-folding, Black
• Glass, windshield shade band
• Door handles, Black

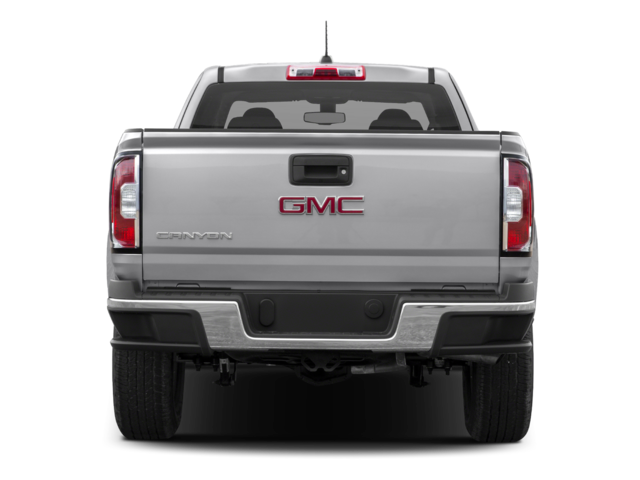

• Tailgate, locking
• Tailgate handle, Black

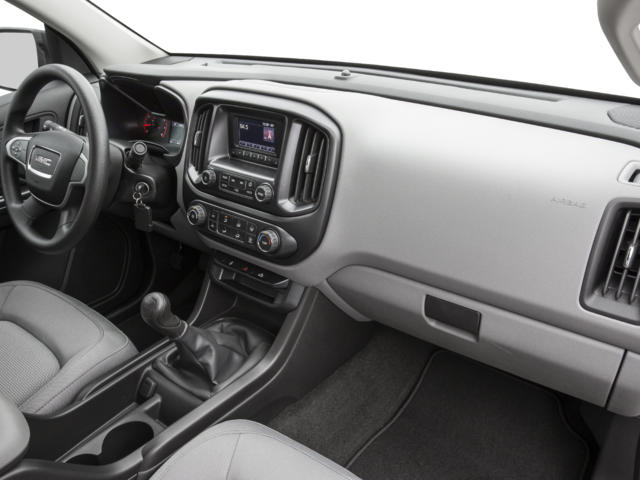

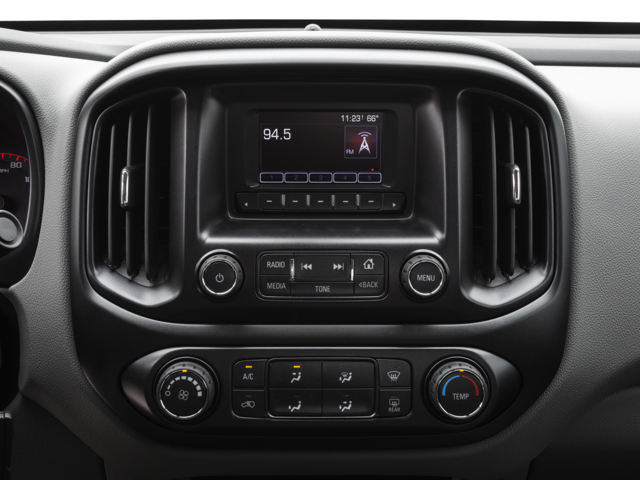

• Audio system, 7" diagonal Color Touch Screen with GMC Infotainment System, AM/FM with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, voice command pass-through to phone; You can customize your content with audio, weather and more
• Audio system feature, 6-speaker system

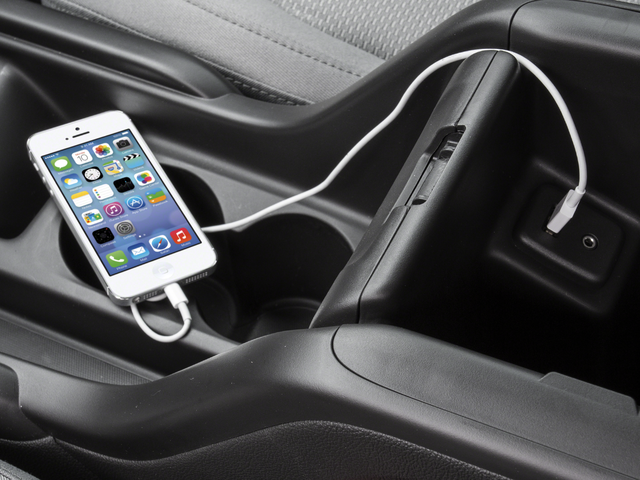

• Audio system feature, USB port, located on instrument panel

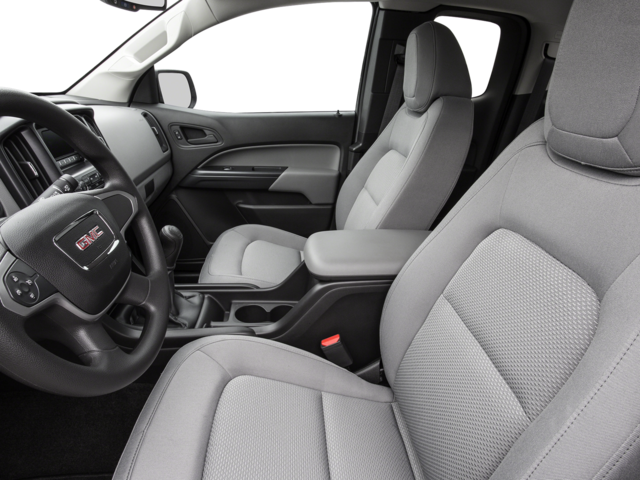

• Seats, front bucket
• Seat trim, Vinyl
• Seat adjuster, driver 4-way power with manual recline
• Seat adjuster, passenger 2-way manual, fore/aft with manual recline

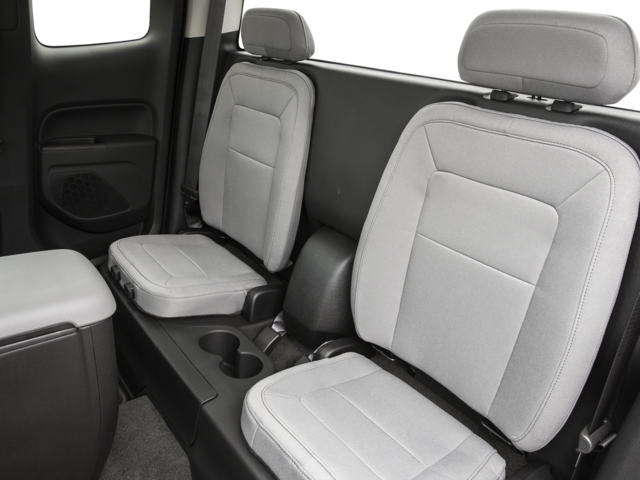

• Seats, dual rear with underseat storage

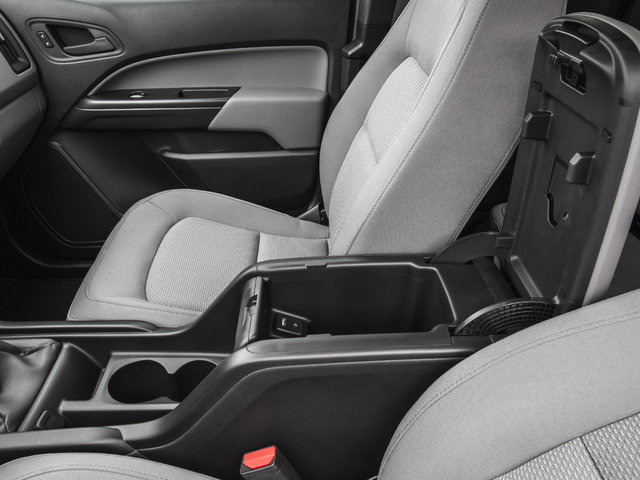

• Console, floor, front compartment, custom
• Floor covering, color-keyed carpeting
• Floor mats, carpeted front (Deleted when (B38) full-length Black vinyl floor covering is ordered. Requires (B30) color-keyed carpeting floor covering.)
• Floor mats, carpeted rear (Requires (B30) color-keyed carpeting floor covering.)

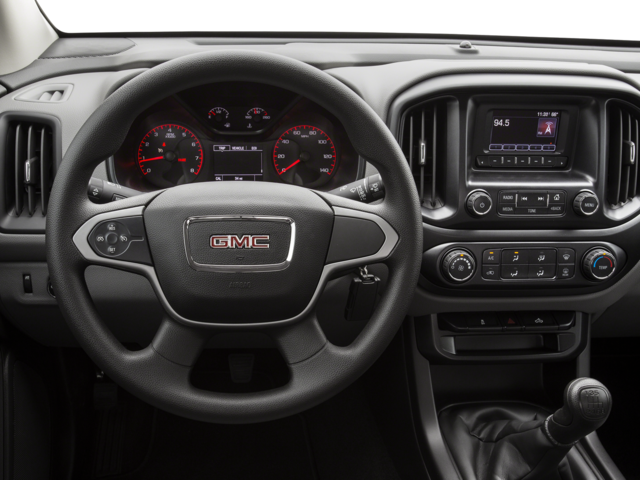

• Steering wheel, urethane
• Steering column, tilt, manual
• Speedometer, miles/kilometers
• Display, driver instrument information enhanced, one color
• Door locks, power
• Windows, power with driver Express-Up and Down
• Theft-deterrent system, immobilization
• Air conditioning, single-zone manual climate control

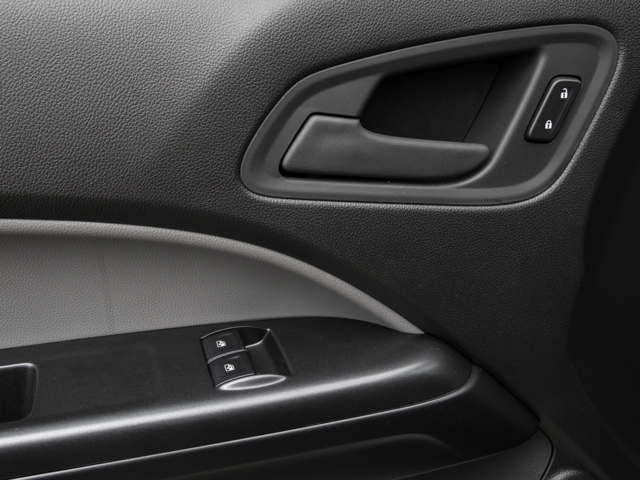

• Handles, door release, front and rear, Jet Black
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger with passenger covered vanity mirror
• Lighting, interior, center dome

• StabiliTrak, stability control system
• Traction control, electronic
• Daytime Running Lamps
• Airbags, Dual-stage frontal airbags for driver and front passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal passenger airbag (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitor System

PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT BUCKET

• (STD)

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH SCREEN WITH GMC INFOTAINMENT SYSTEM, AM/FM

• with USB ports
• auxiliary jack
• Bluetooth® streaming audio for music and most phones
• voice command pass-through to phone; You can customize your content with audio
• weather and more (STD)

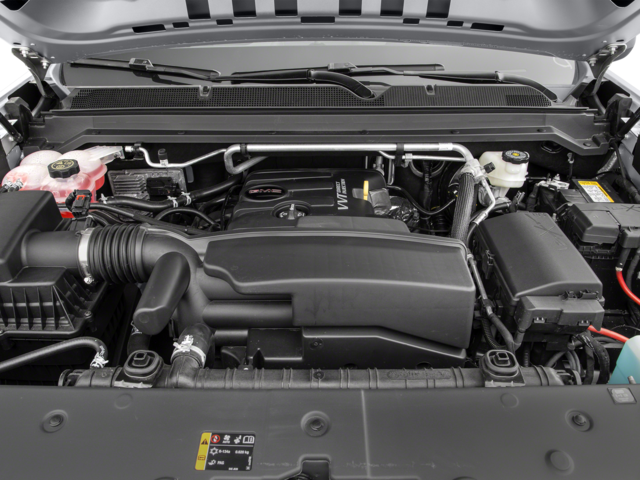

ENGINE, 3.6L DI DOHC V6 VVT

• (308 hp [230.0 kW] @ 6800 rpm
• 275 lb-ft of torque [373 N-m] @ 4000 rpm)

LPO, ALL-WEATHER FLOOR LINER

• includes GMC logo

LPO, FRONT AND REAR SPLASH GUARDS

• custom-molded with logo on rear

TRAILERING PACKAGE

• includes trailer hitch and 7-pin connector

• TOW/HAUL MODE

  GVWR

• 5900 LBS. (2676 KG)

  HITCH GUIDANCE

• TRAILERING ASSIST GUIDELINE

  DIFFERENTIAL

• AUTOMATIC LOCKING REAR

  SUMMIT WHITE

  REAR AXLE

• 3.42 RATIO

  JET BLACK/DARK ASH

• CLOTH SEAT TRIM

  TRAILER BRAKE CONTROLLER

• INTEGRATED

  TRANSMISSION

• 8-SPEED AUTOMATIC

  EMISSIONS

• CONNECTICUT
• DELAWARE
• MAINE
• MARYLAND
• MASSACHUSETTS
• NEW JERSEY
• NEW YORK
• OREGON
• PENNSYLVANIA
• RHODE ISLAND
• VERMONT AND WASHINGTON STATE REQUIREMENTS

  WHEEL

• SPARE
• 16" X 7" (40.6 CM X 17.8 CM) STEEL

  TIRE

• SPARE 265/70R16 ALL-SEASON
• BLACKWALL

  SOLID PAINT

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Front (lbs): 2900
• Gross Axle Wt Rating - Rear (lbs): 3500
• Gross Axle Wt Rating - Rear (lbs): 3300
• Curb Weight - Front (lbs): 2375
• Curb Weight - Rear (lbs): 1763
• Gross Vehicle Weight Rating Cap (lbs): 5900
• Gross Vehicle Weight Rating Cap (lbs): 5600
• Gross Combined Wt Rating (lbs): 12000
• Gross Combined Wt Rating (lbs): 8500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Trailer Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Tongue Wt. (lbs): - TBD -
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Maximum Trailering Capacity (lbs): 7000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 4.10
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.2 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 12.75 x - TBD -
• Tires
• Front Tire Order Code: QJJ
• Rear Tire Order Code: QJJ
• Spare Tire Order Code: ZJJ
• Spare Tire Order Code: QDC
• Front Tire Size: 265/70R16
• Rear Tire Size: 265/70R16
• Spare Tire Size: 265/70R16
• Spare Tire Size: T175/90D18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 18 x 4.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 128.30
• Length, Overall w/o rear bumper (in): 212.40
• Width, Max w/o mirrors (in): 74.30
• Height, Overall (in): 70.30
• Overhang, Front (in): 36.90
• Overhang, Rear w/o bumper (in): 47.20
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 36.20
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.30
• Ground Clearance, Rear (in): 8.30
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 74.00
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 57.80
• Cargo Box Width @ Wheelhousings (in): 44.40
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 41.40
• Front Leg Room (in): 45.00
• Front Shoulder Room (in): 57.50
• Front Hip Room (in): 55.00
• Second Head Room (in): 36.70
• Second Leg Room (in): 28.60
• Second Shoulder Room (in): 57.30
• Second Hip Room (in): 52.20
• Summary

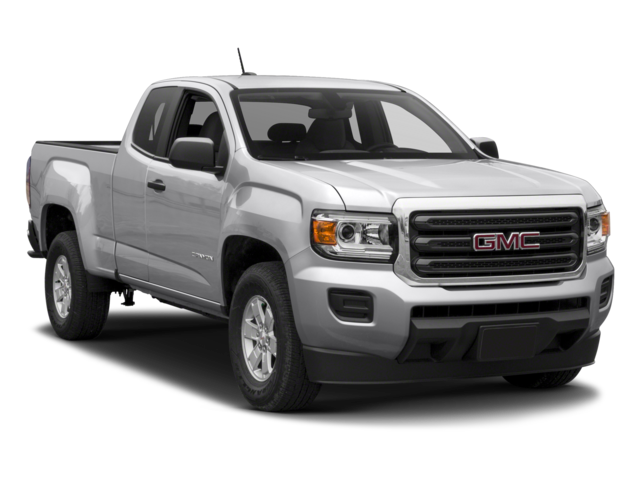

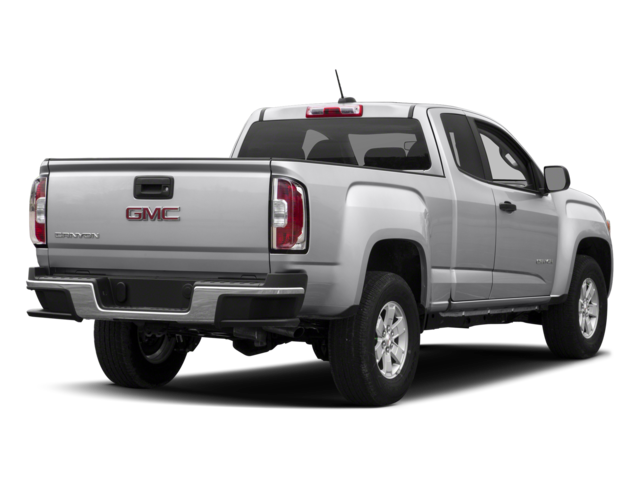

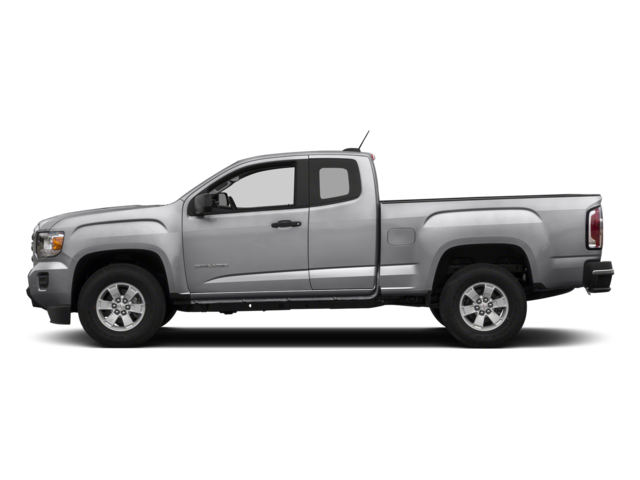

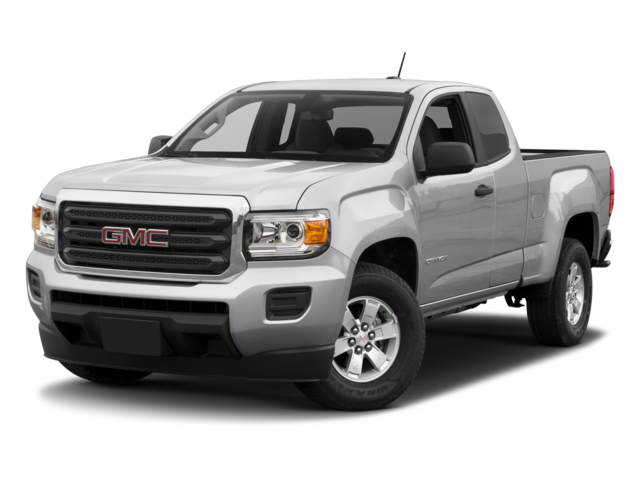

• Vehicle Name: GMC Canyon
• Body Style: Extended Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.4
