• Rear axle, 3.42 ratio
• Durabed, pickup bed
• Push Button Start
• Automatic Stop/Start (Not available with (5W4) Special Services Package, (9C1) Police Pursuit Package or (FHS) E85 FlexFuel capability.)
• Transfer case, single speed electronic Autotrac with push button control (4WD models only)
• Four wheel drive
• Battery, heavy-duty 730 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Recovery hooks, front, frame-mounted, Black
• Frame, fully-boxed, hydroformed front section
• Suspension Package, Standard
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Capless Fuel Fill
• Exhaust, single outlet

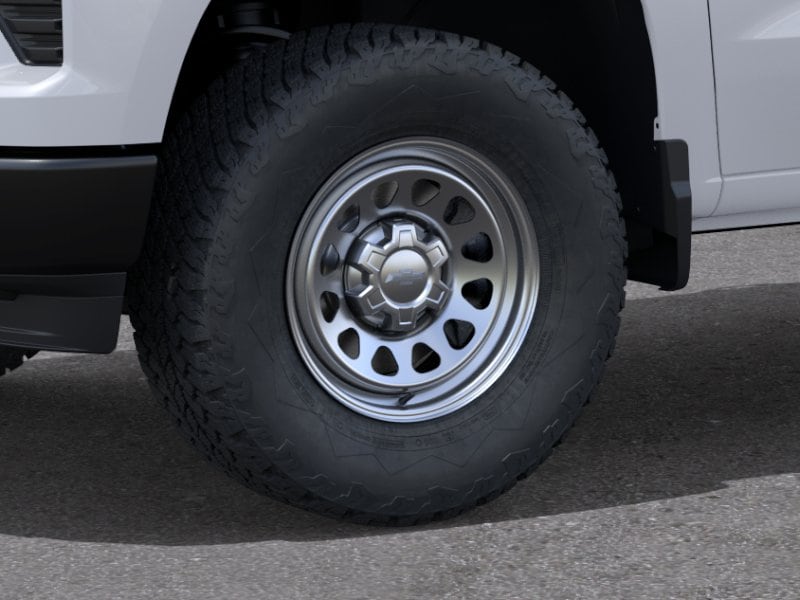

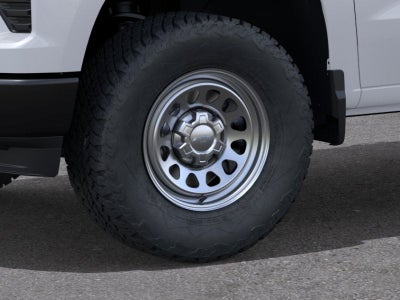

• Wheels, 17" x 8" (43.2 cm x 20.3 cm) Ultra Silver painted steel
• Tires, 255/70R17 all-season, blackwall
• Tire, spare 255/70R17 all-season, blackwall (Included with (QBN) 255/70R17 all-season, blackwall tires.)
• Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumpers, front, Black (semi-gloss)
• Bumpers, rear, Black (semi-gloss)
• CornerStep, rear bumper
• Cargo tie downs (12), fixed rated at 500 lbs per corner

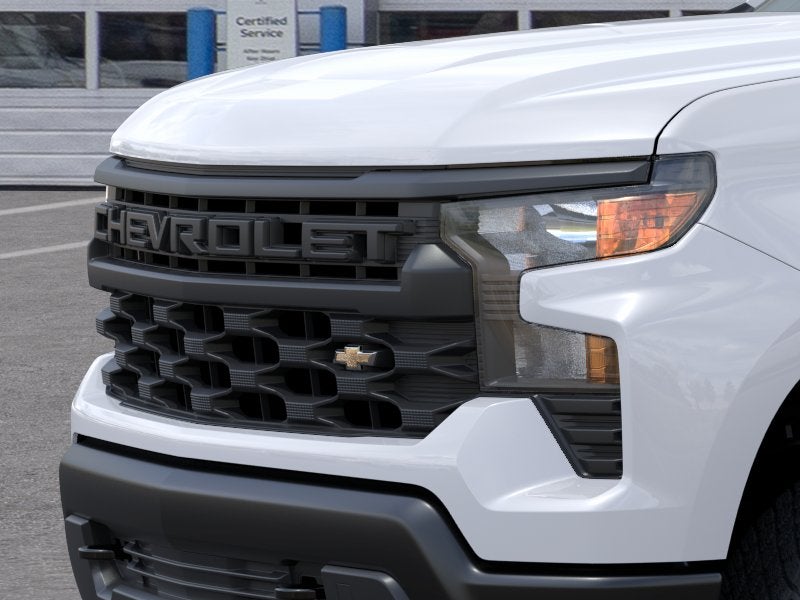

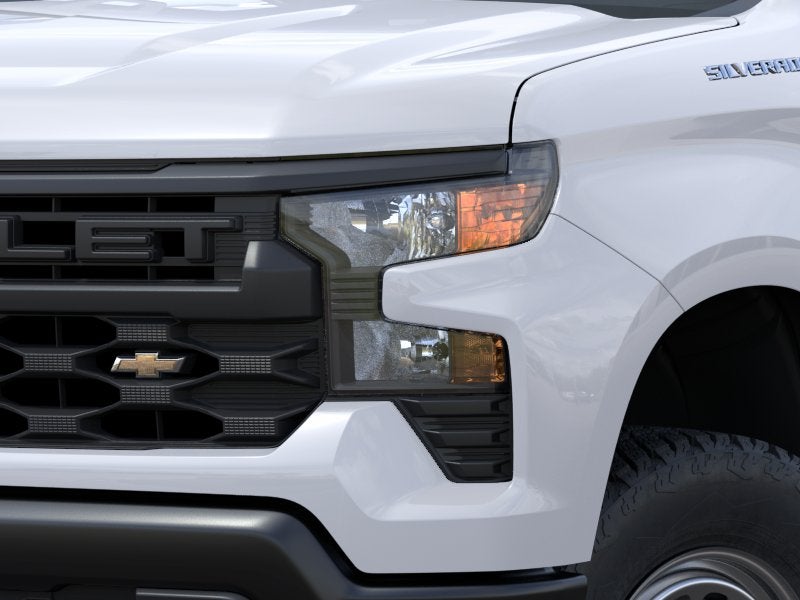

• Headlamps, halogen reflector with halogen Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel (incandescent on Regular Cab models, LED on Crew Cab and Double Cab models)

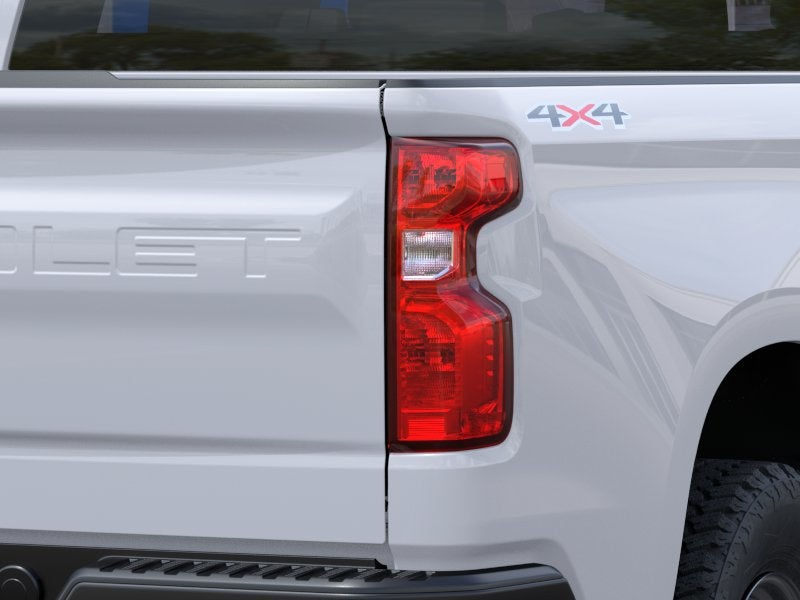

• Taillamps with incandescent tail, stop and reverse lights
• Mirrors, outside manual, Black (Standard on Crew Cab and Double Cab models only. Not available on Regular Cab models.)
• Glass, solar absorbing, tinted

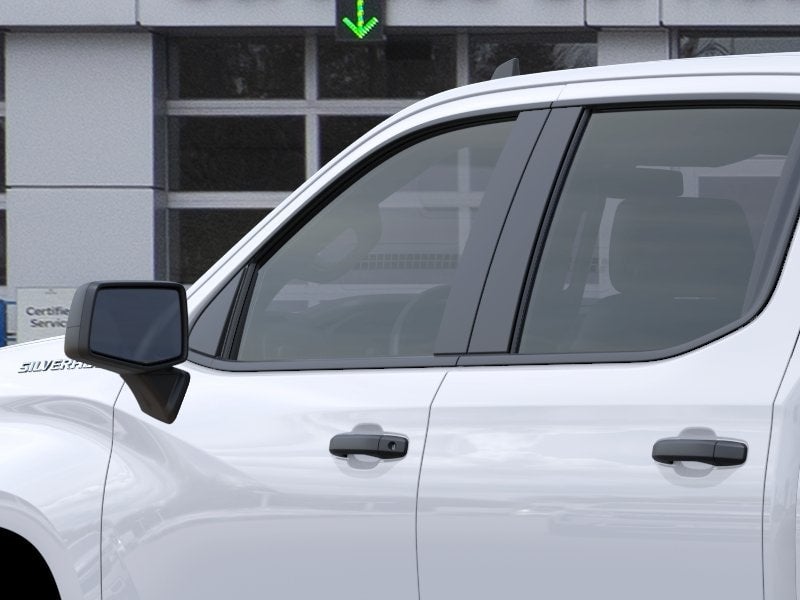

• Door handles, Black
• Tailgate and bed rail protection cap, top
• Tailgate, standard
• Tailgate, locking utilizes same key as ignition and door (Removed when (QT5) EZ Lift power lock and release tailgate is ordered.)
• Tailgate, gate function manual, no EZ Lift

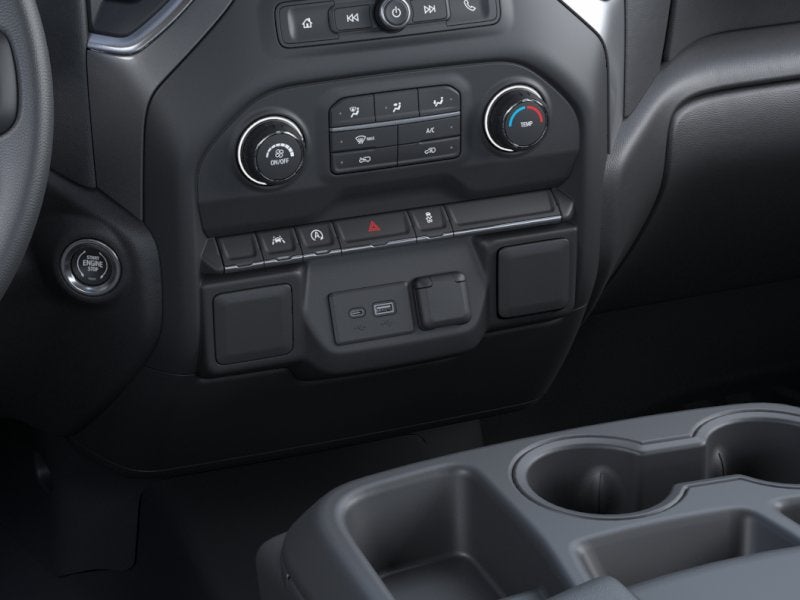

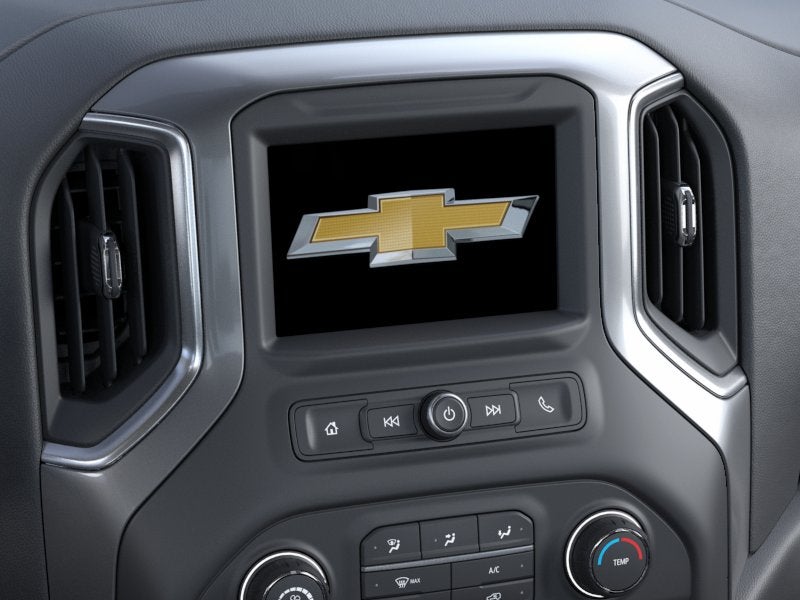

• Audio system, Chevrolet Infotainment 3 system 7" diagonal HD color touchscreen, AM/FM stereo, Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, Wireless Apple CarPlay and Wireless Android Auto compatibility
• Sirius XM, delete (Can be upgraded to (U2K) SiriusXM.)
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Wireless phone projection for Apple CarPlay and Android Auto
• Bluetooth® for phone, connectivity to vehicle infotainment system
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

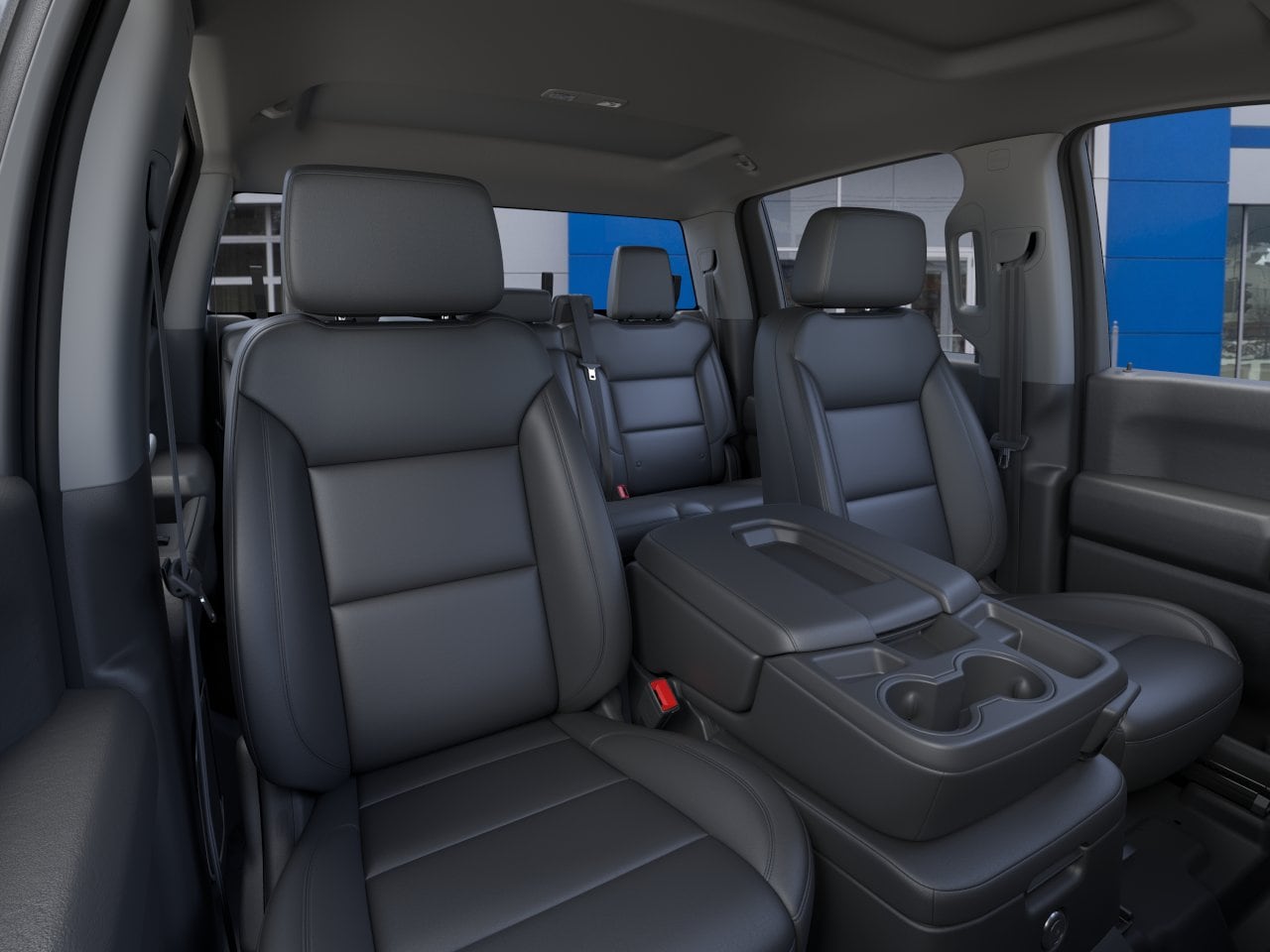

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)

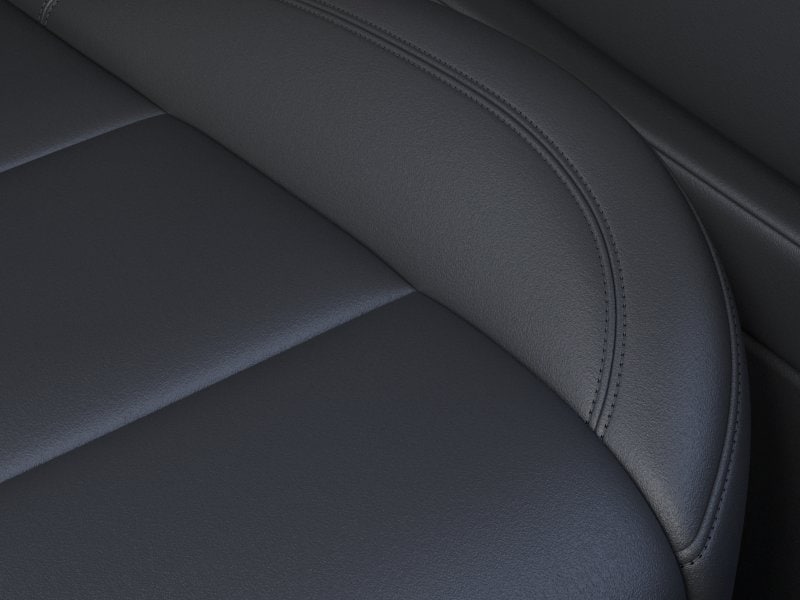

• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual

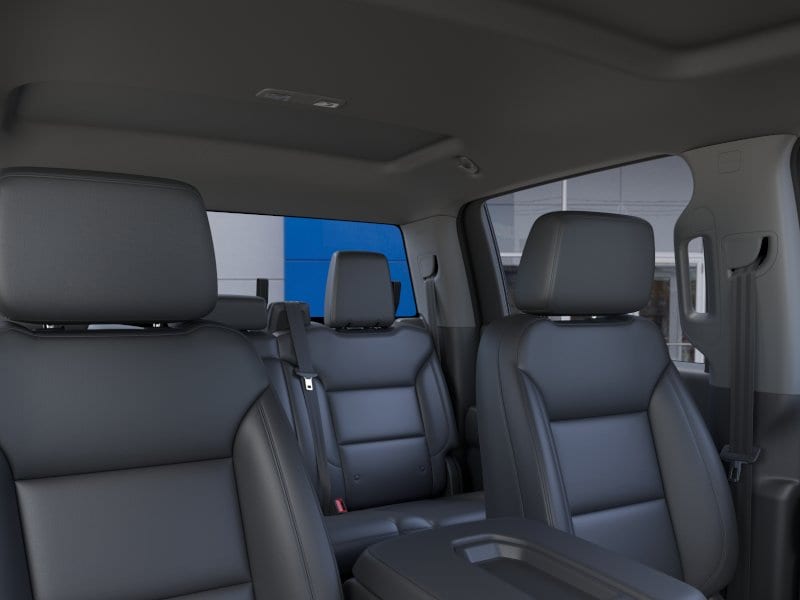

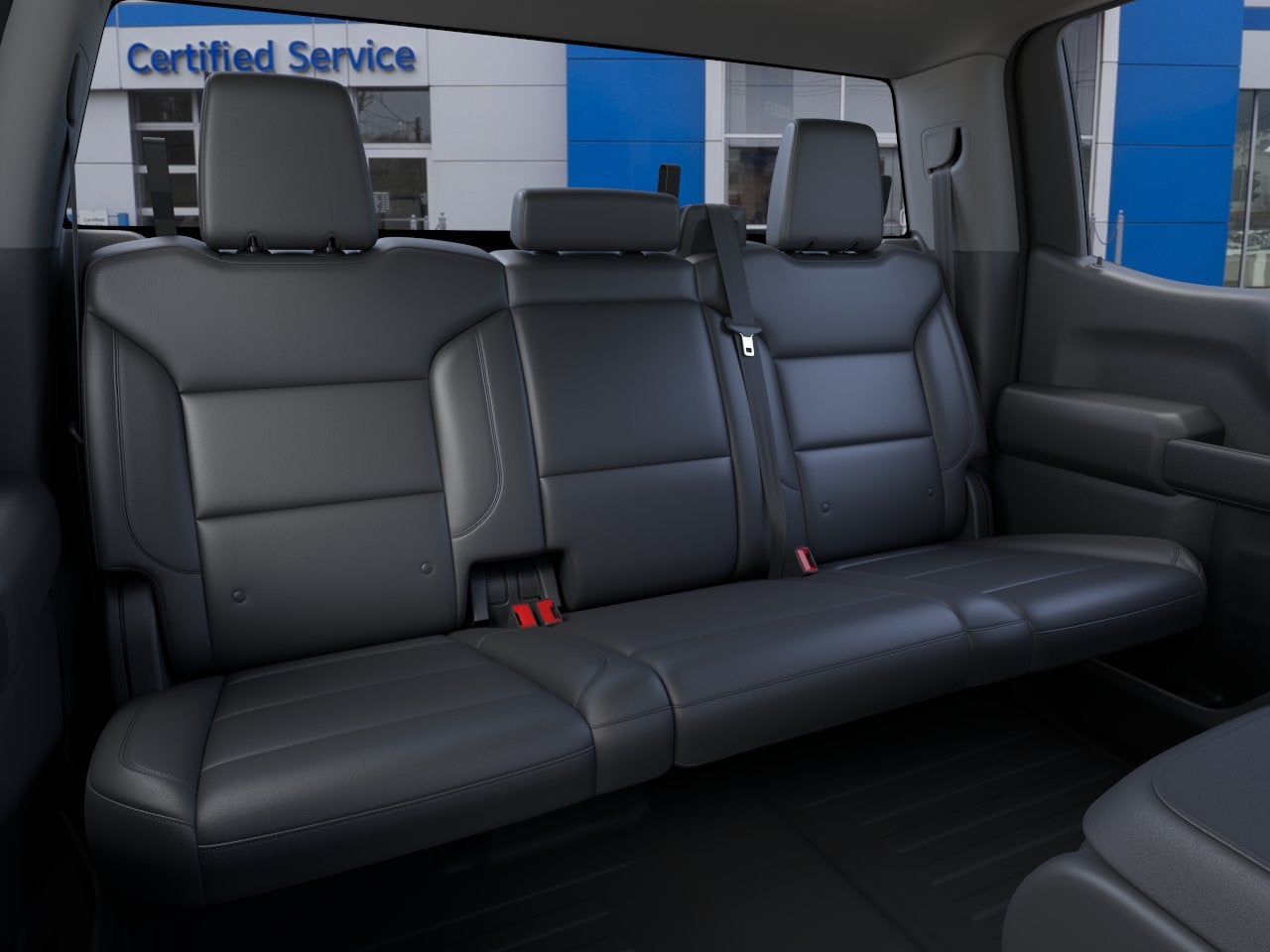

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab or Double Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)

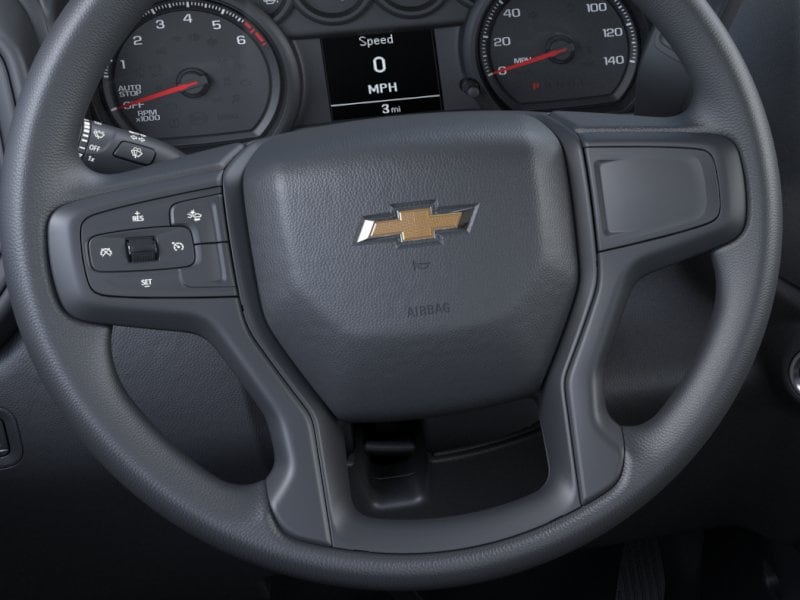

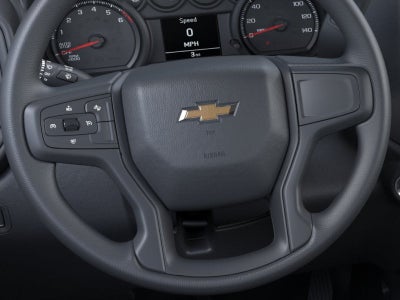

• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Steering column lock, electrical

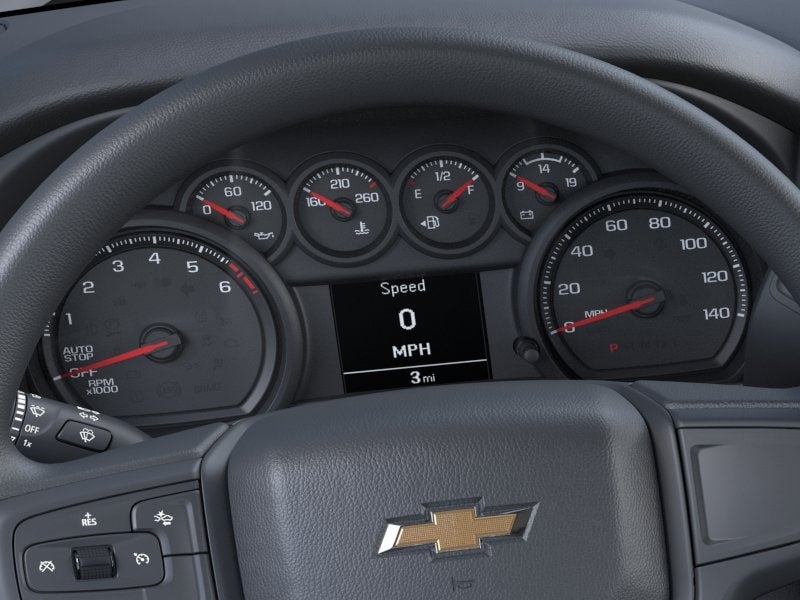

• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster

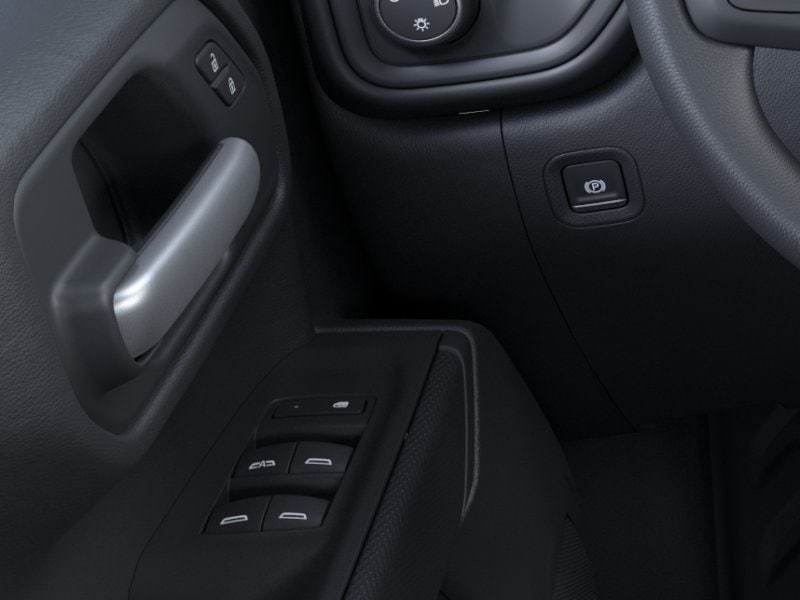

• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down (Not available with Regular Cab models.)
• Door locks, power
• Remote Keyless Entry, with 2 transmitters
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Power outlet, front auxiliary, 12-volt
• USB Ports, 2, Charge/Data ports located on instrument panel
• Air conditioning, single-zone manual
• Air vents, rear, heating/cooling (Not available on Regular Cab models.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted

• Automatic Emergency Braking
• Front Pedestrian Braking
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar services capable (See onstar.com for details and limitations. Services vary by model. Service plan required.)
• OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (Requires (UE1) OnStar. OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)
• HD Rear Vision Camera
• Lane Keep Assist with Lane Departure Warning
• Following Distance Indicator
• Forward Collision Alert
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Rear Seat Belt Indicator (Requires Crew Cab or Double Cab model.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
• Tire Pressure Monitoring System, auto learn includes Tire Fill Alert (does not apply to spare tire)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with covered armrest storage and under-seat storage (lockable) (STD)

GVWR, 7000 LBS. (3175 KG)

• (STD)

HITCH GUIDANCE

• dynamic single line to aid in trailer alignment for hitching

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM

• 7" diagonal HD color touchscreen
• AM/FM stereo
• Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• Wireless Apple CarPlay and Wireless Android Auto compatibility (STD)

ENGINE, TURBOMAX

• (310 hp [231 kW] @ 5600 rpm
• 430 lb-ft of torque [583 Nm] @ 3000 rpm) (STD)

TRANSMISSION, 8-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

WHEELS, 17" X 8" (43.2 CM X 20.3 CM) ULTRA SILVER PAINTED STEEL

• (STD)

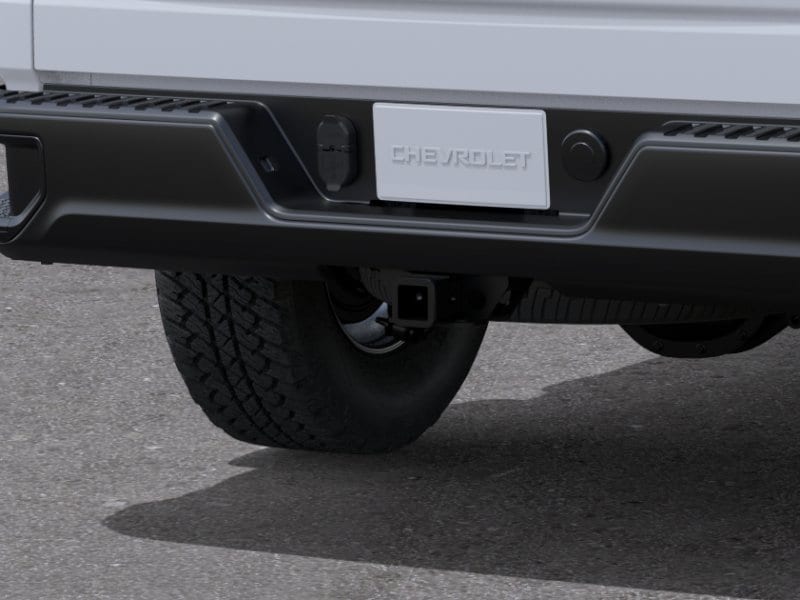

TRAILERING PACKAGE

• includes trailer hitch
• 7-pin and 4-pin connectors and (CTT) Hitch Guidance

• SUMMIT WHITE

  REAR AXLE

• 3.42 RATIO

  JET BLACK

• VINYL SEAT TRIM

  EMISSIONS

• COLORADO
• CONNECTICUT
• DELAWARE
• MAINE
• MARYLAND
• MASSACHUSETTS
• MINNESOTA
• NEVADA
• NEW JERSEY
• NEW MEXICO
• NEW YORK
• OREGON
• PENNSYLVANIA
• RHODE ISLAND
• VERMONT AND WASHINGTON STATE REQUIREMENTS

  TIRES

• 265/70R17 ALL-TERRAIN
• BLACKWALL

  LICENSE PLATE KIT

• FRONT

  TIRE

• SPARE 265/70R17SL ALL-SEASON
• BLACKWALL

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2845
• Curb Weight - Rear (lbs): 1981
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 14500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2225
• Maximum Trailering Capacity (lbs): 9400
• Suspension
• Suspension Type - Front: Independent coil-over-shock
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QDV
• Front Tire Order Code: QBN
• Rear Tire Order Code: QDV
• Rear Tire Order Code: QBN
• Spare Tire Order Code: XCQ
• Spare Tire Order Code: QBR
• Front Tire Size: 265/70R17
• Front Tire Size: 255/70R17
• Rear Tire Size: 265/70R17
• Rear Tire Size: 255/70R17
• Spare Tire Size: 265/70R17SL
• Spare Tire Size: 255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8
• Rear Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Box Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.4
• Length, Overall (in): 231.88
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.51
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.08
• Ground Clearance, Rear (in): 8.08
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

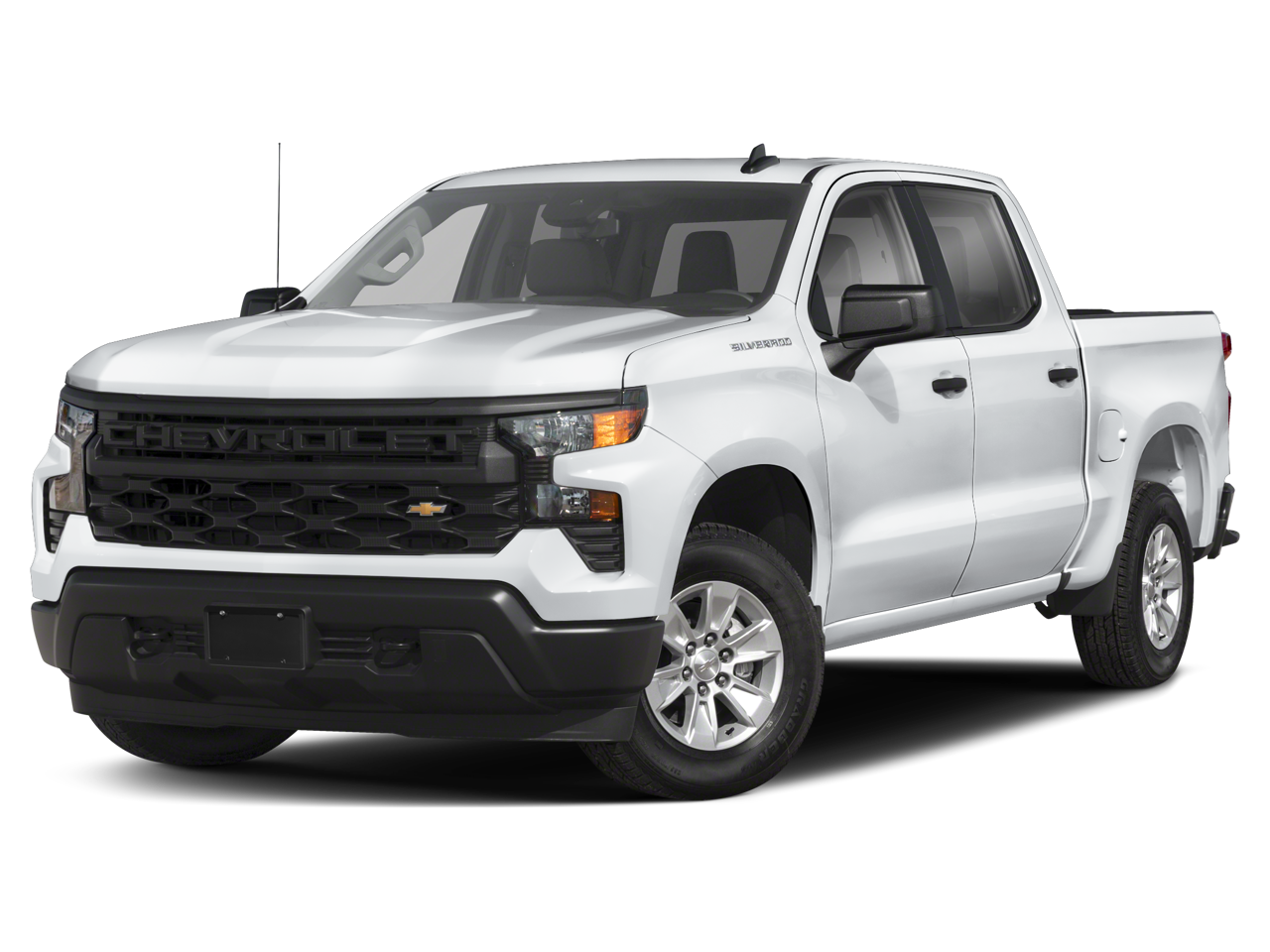

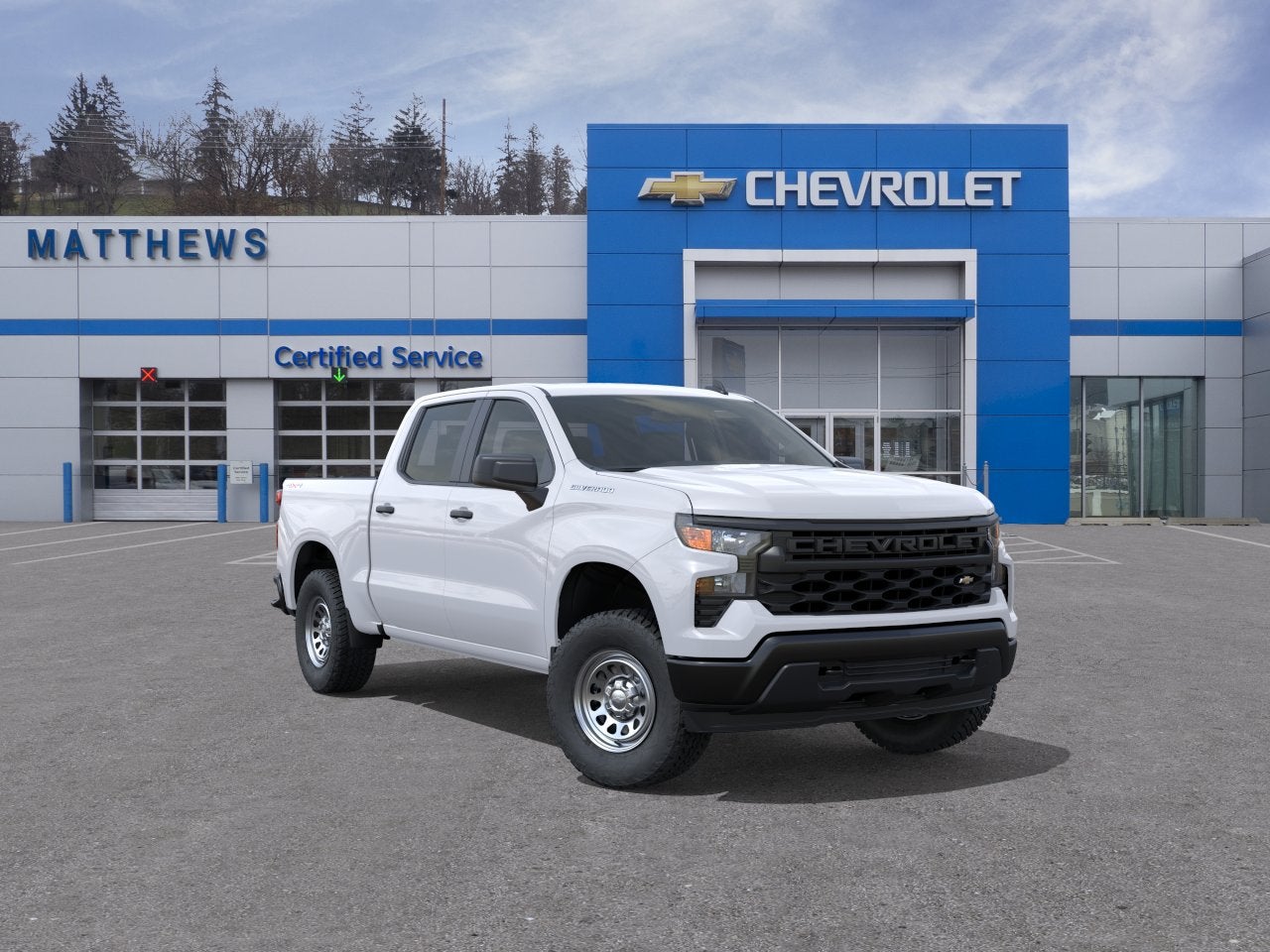

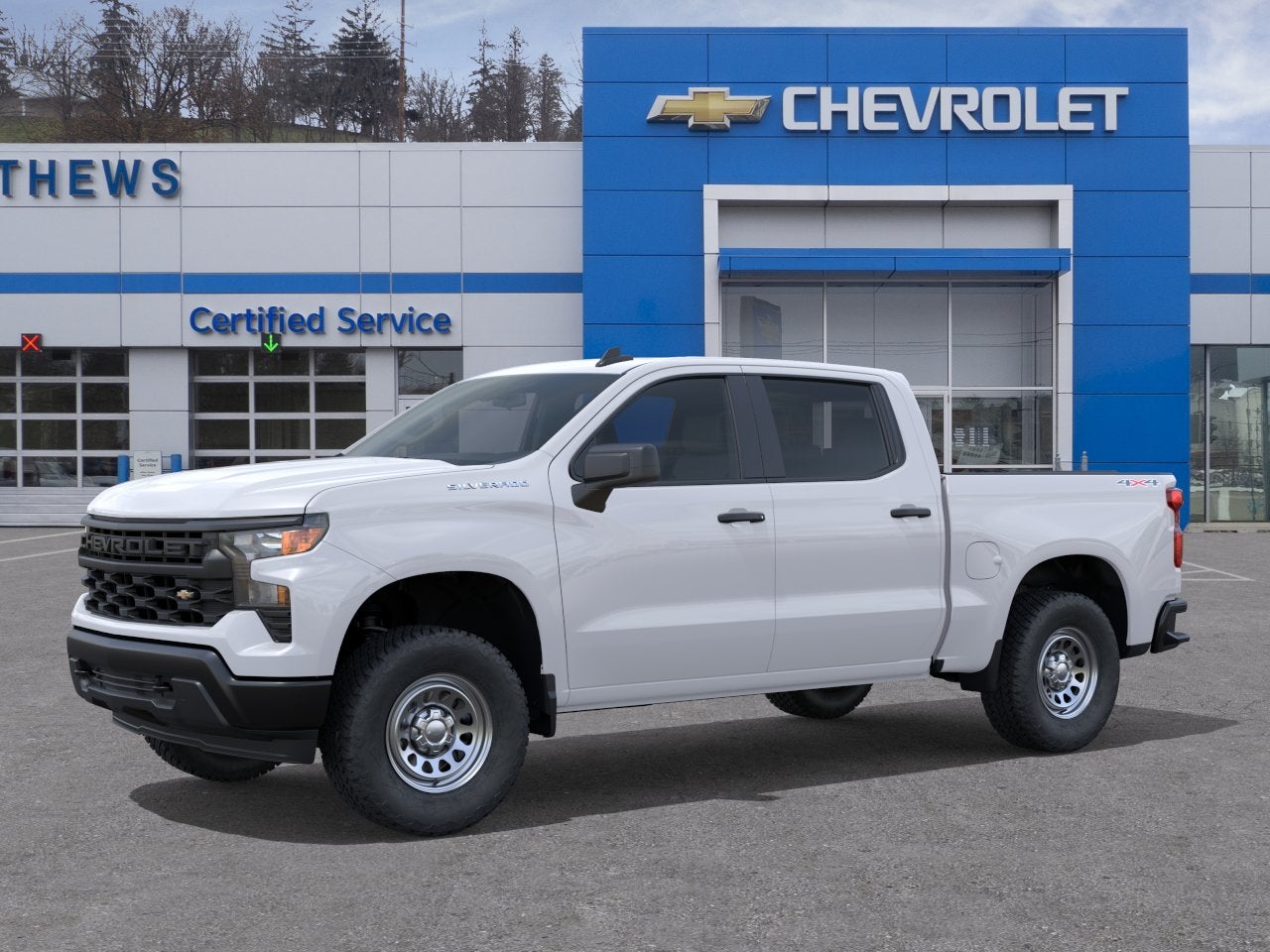

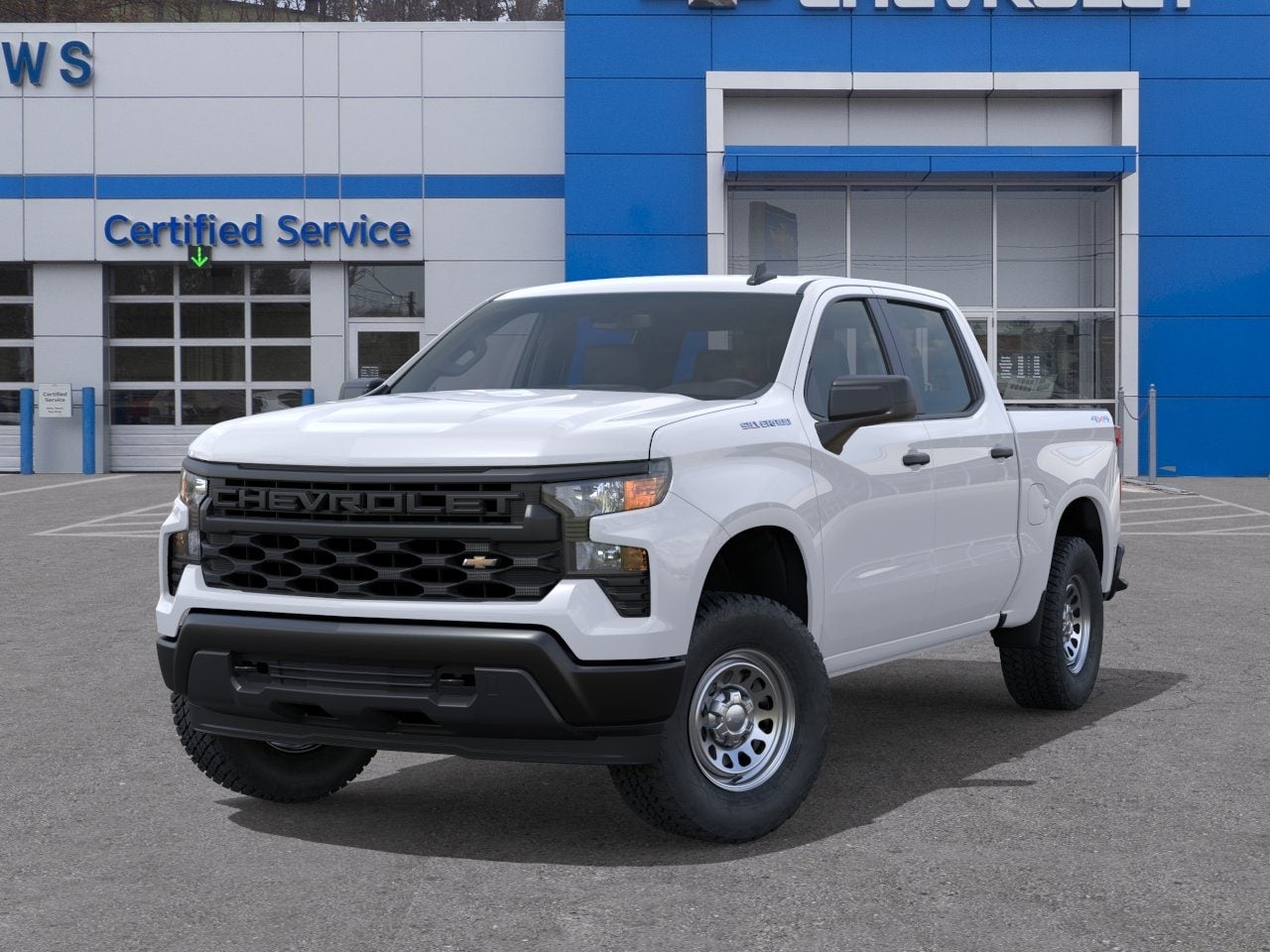

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
