• Durabed, pickup bed
• Push Button Start
• Air filter, heavy-duty
• Air filtration monitoring
• Transfer case, two-speed electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Trailer brake controller, integrated
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Recovery hooks, front, frame-mounted, Black
• Suspension Package
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Exhaust, single, side

• Wheels, 17" (43.2 cm) painted steel, Silver
• Tires, LT245/75R17E all-season, blackwall
• Tire, spare LT245/75R17E all-season, blackwall (Included and only available with (QHQ) LT245/75R17E all-season, blackwall tires with (E63) Durabed, pickup bed. Available to order when (ZW9) pickup bed delete and (QHQ) LT245/75R17E all-season, blackwall tires are ordered.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumpers, front, Black
• Bumpers, rear, Black
• CornerStep, rear bumper
• BedStep, Black integrated on forward portion of bed on driver and passenger side (Deleted when (ZW9) pickup bed delete is ordered.)
• Moldings, beltline, Black
• Cargo tie downs (12), fixed rated at 500 lbs per corner (Deleted with (ZW9) pickup bed delete.)
• Headlamps, halogen reflector with halogen Daytime Running Lamps
• IntelliBeam, automatic high beam on/off
• Taillamps with incandescent tail, stop and reverse lights
• Lamps, cargo area, cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Mirrors, outside power-adjustable vertical trailering with heated upper glass, lower convex mirrors, integrated turn signals, manual folding/extending (extends 3.31" [84.25mm]) (Standard on Regular Cab models. Not available with (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package on Regular Cab. Included and only available with (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package on Double and Crew Cab models.)
• Mirror caps, Black
• Glass, solar absorbing, tinted
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection cap, top
• Tailgate, locking, utilizes same key as ignition and door (Upgraded to (QT5) EZ Lift power lock and release tailgate when (PCV) WT Convenience Package or (ZLQ) WT Fleet Convenience Package is ordered. Not available with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no EZ Lift (Deleted with (ZW9) pickup bed delete.)
• Door handles, Black grained

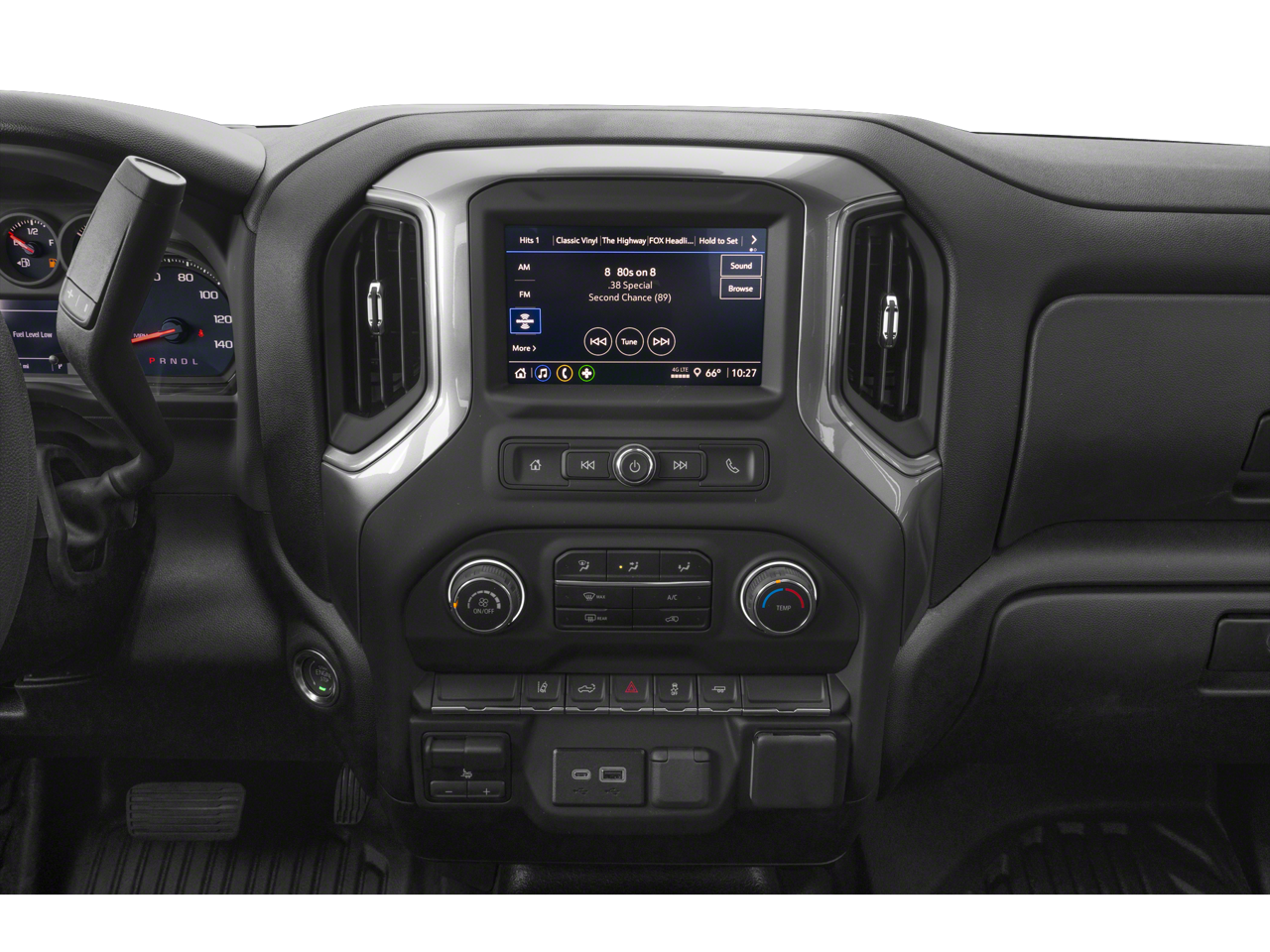

• Audio system, Chevrolet Infotainment 3 system 7" diagonal HD color touchscreen, AM/FM stereo, Bluetooth® audio streaming for 2 active devices, voice command pass-through to phone, Wireless Apple CarPlay and Wireless Android Auto compatibility
• Audio system feature, 2-speakers (Requires Regular Cab model.)
• Wireless phone projection for Apple CarPlay and Android Auto
• Bluetooth® for phone connectivity to vehicle infotainment system
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

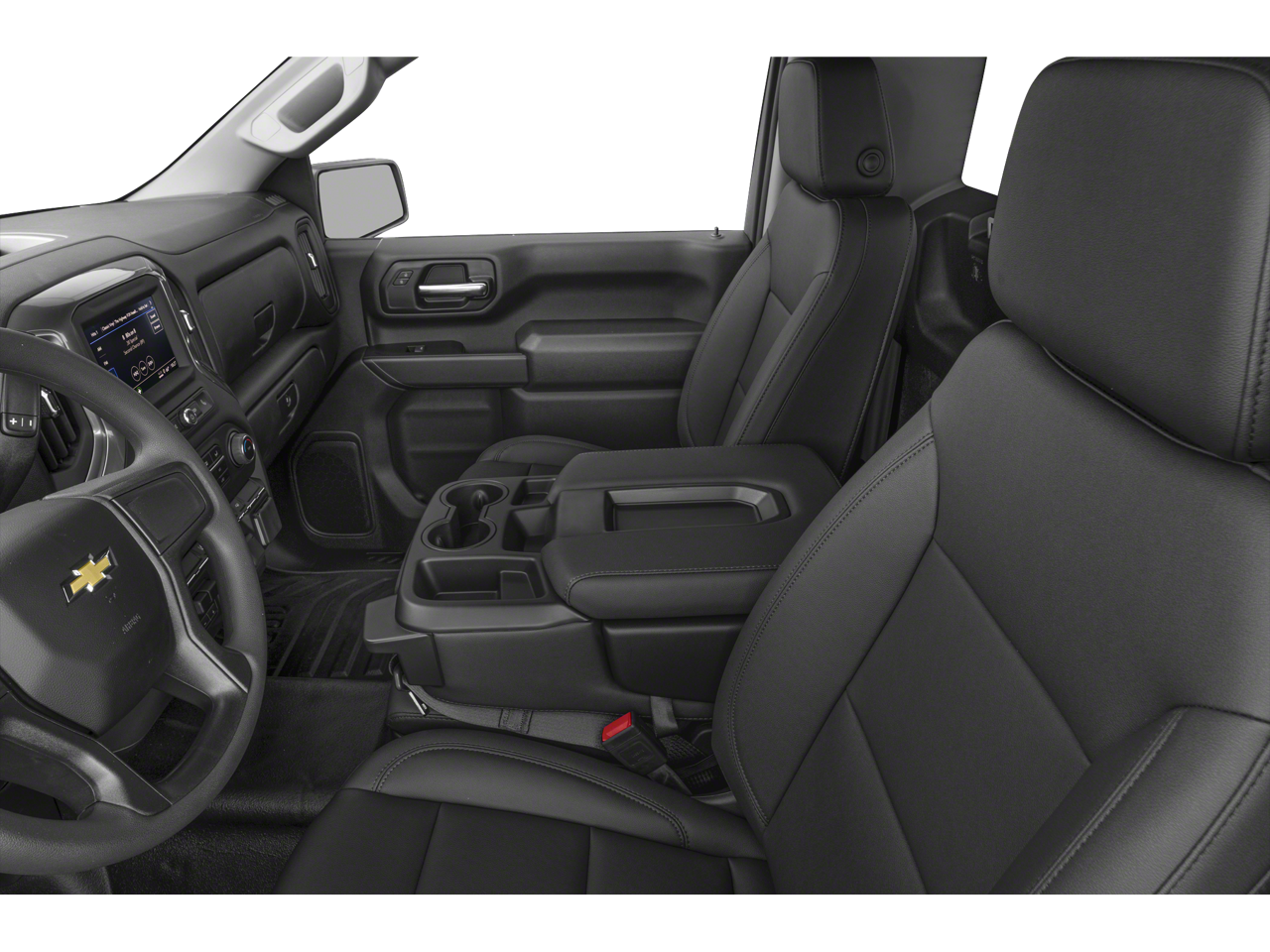

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Vinyl seat trim
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Steering column, Tilt-Wheel, manual with wheel locking security feature
• Driver Information Center, 3.5" diagonal monochromatic display
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster
• Window, power front, drivers express up/down
• Window, power front, passenger express down
• Door locks, power
• Remote Keyless Entry with 2 transmitters
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• USB Ports, 2, Charge/Data ports located on instrument panel
• Power outlet, front auxiliary, 12-volt
• Air conditioning, single-zone
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Automatic Emergency Braking
• Front Pedestrian Braking
• StabiliTrak stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Services capable (See onstar.com for details and limitations. Services vary by model. Service plan required.)
• HD Rear Vision Camera (Deleted when (ZW9) pickup bed delete is ordered.)
• Hitch Guidance dynamic single line to aid in trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Lane Departure Warning
• Following Distance Indicator
• Forward Collision Alert
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use, can be turned on and off in Settings menu
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System
• OnStar Basics (OnStar Fleet Basics for Fleet) Drive confidently with core OnStar services including remote commands, built-in voice assistance, real-time traffic and navigation, and Automatic Crash Response to help if you're in need. (Requires (UE1) OnStar. OnStar Basics includes remote commands, Navigation, Voice Assistance, and Automatic Crash Response, for eligible vehicles with compatible software. OnStar Basics is standard for 8 years; OnStar plan, working electrical system, cell reception and GPS signal required. OnStar links to emergency services. Service coverage varies with conditions and location. Service availability, features and functionality vary by device and software version. See onstar.com for details and limitations.)

• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available with (ZW9) pickup bed delete.)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories.

SEATS, FRONT 40/20/40 SPLIT-BENCH

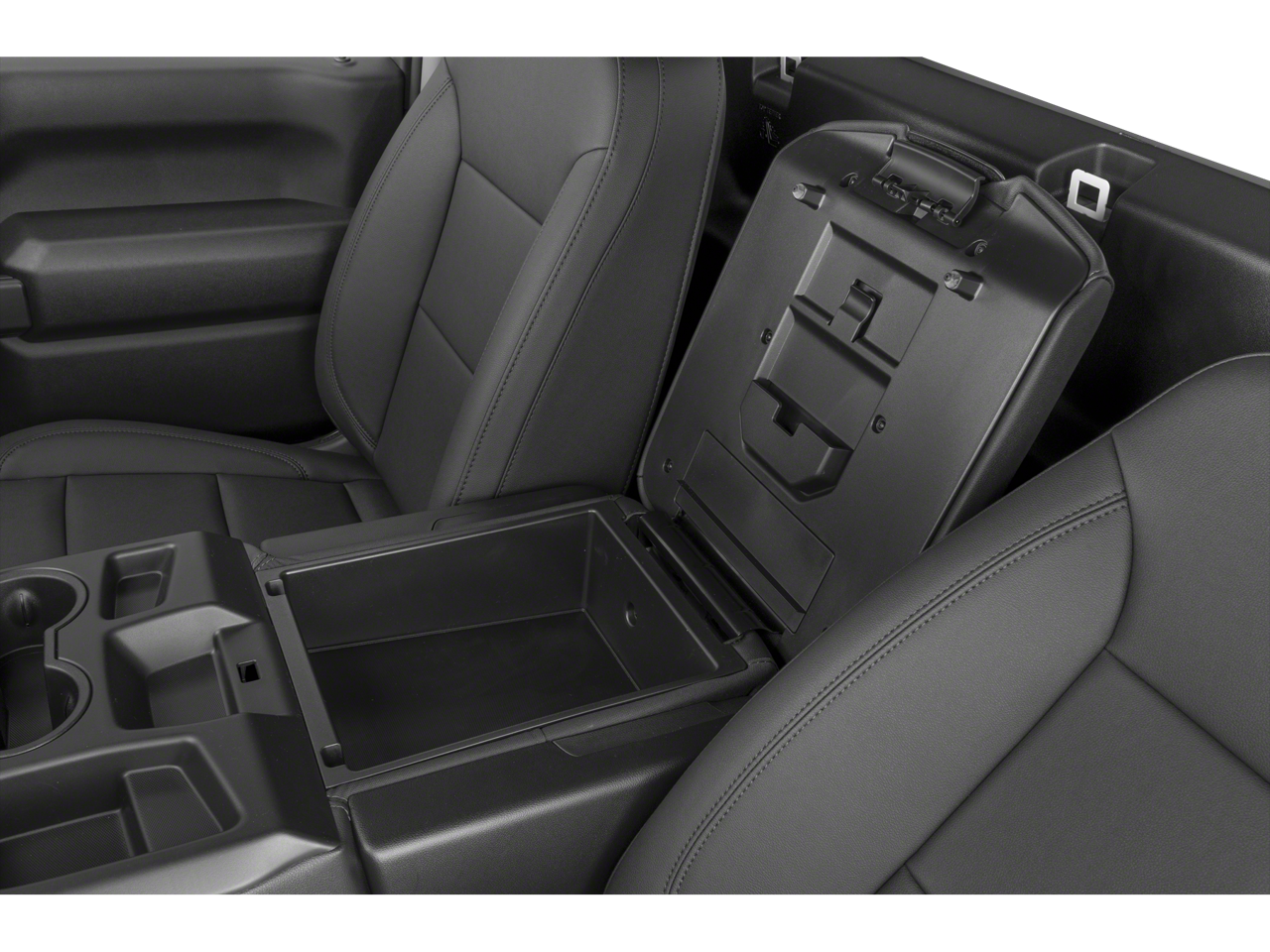

• with covered armrest storage and under-seat storage (lockable) (STD)

CHEVYTEC SPRAY-ON BEDLINER

• Black (does not include spray-on liner on tailgate due to Black composite inner panel)

MIRRORS, OUTSIDE POWER-ADJUSTABLE VERTICAL TRAILERING WITH HEATED AND AUTO-DIMMING UPPER GLASS

• lower convex mirrors
• turn signal indicators
• puddle lamps
• (U12) perimeter lighting
• auxiliary lighting
• power folding/manual extending (extends 3.31" [84.25mm]) Includes (DD8) auto-dimming rearview mirror.

DURABED, PICKUP BED

• (STD)

AUDIO SYSTEM, CHEVROLET INFOTAINMENT 3 SYSTEM

• 7" diagonal HD color touchscreen
• AM/FM stereo
• Bluetooth® audio streaming for 2 active devices
• voice command pass-through to phone
• Wireless Apple CarPlay and Wireless Android Auto compatibility (STD)

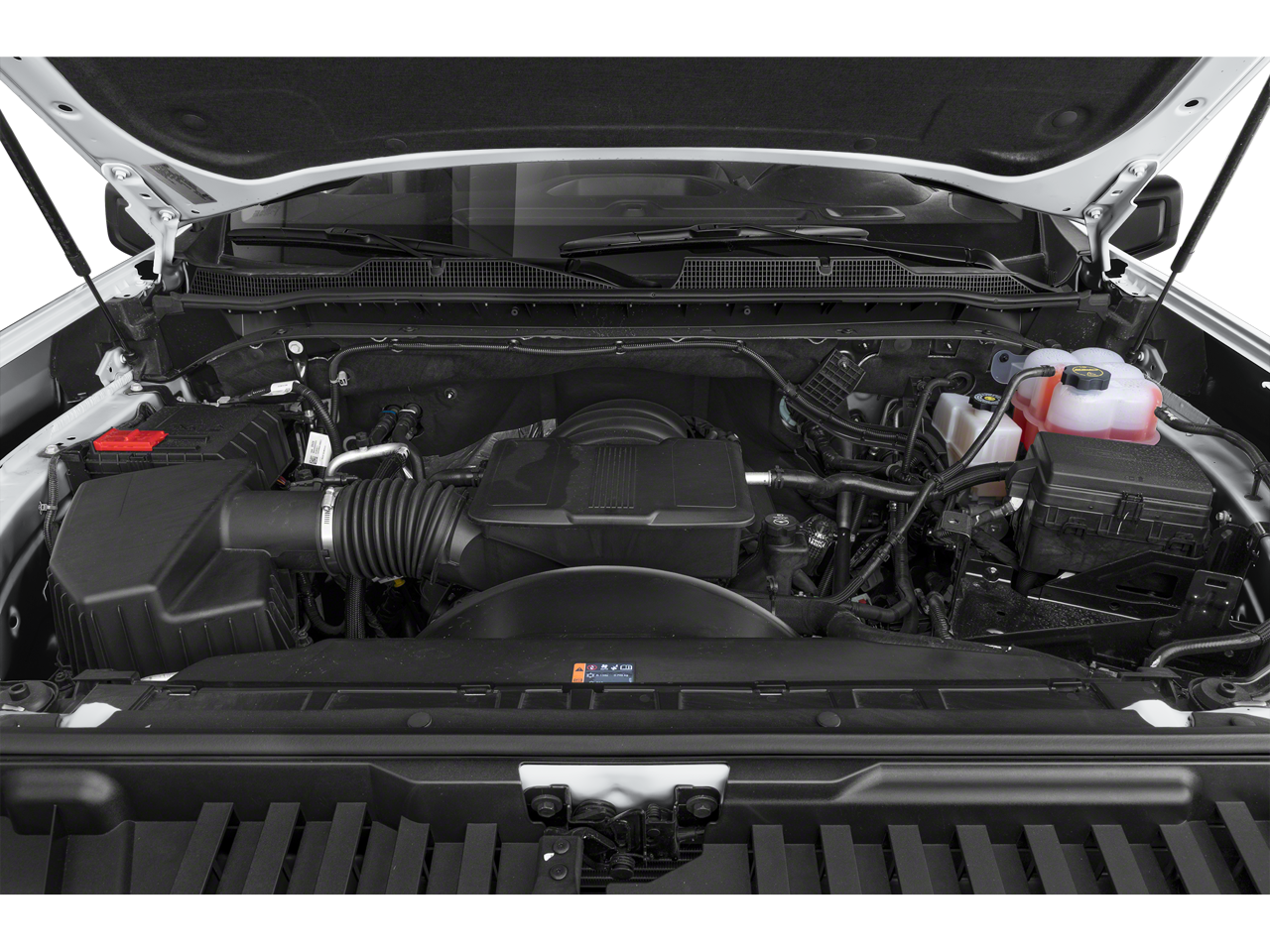

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD)

TRANSMISSION, 10-SPEED AUTOMATIC

• (STD)

SKID PLATES

• protect the oil pan
• front axle and transfer case

WT CONVENIENCE PACKAGE

• includes (QT5) EZ Lift power lock and release tailgate
• (AKO) tinted windows and (C49) rear-window defogger

TAILGATE, GATE FUNCTION MANUAL WITH EZ LIFT

• includes power lock and release

LPO, BLACK WORK STEP

• (dealer-installed)

SNOW PLOW PREP/CAMPER PACKAGE

• includes (KW5) 220-amp alternator
• includes increased front GAWR on Heavy Duty models
• (NZZ) skid plates (transfer case and oil pan)
• pass through dash grommet hole and roof emergency light provisions.

Z71 OFF-ROAD PACKAGE

• includes (Z71) Off-Road suspension with off-road tuned twin tube Rancho shocks
• (JHD) Hill Descent Control and (NZZ) skid plates (transfer case and oil pan) Includes (QXT) LT265/70R17 all-terrain
• blackwall tires.

• GLASS

• DEEP-TINTED

  DEFOGGER

• REAR-WINDOW ELECTRIC

  MIRROR

• INSIDE REARVIEW AUTO-DIMMING

  REAR AXLE

• 3.73 RATIO

  STERLING GRAY METALLIC

  JET BLACK

• CLOTH SEAT TRIM

  GVWR

• 10
• 650 LBS. (4831 KG)

  HILL DESCENT CONTROL

  BATTERY

• AUXILIARY
• 700 COLD-CRANKING AMPS/70 AMP-HR

  ALTERNATOR

• 220 AMPS

  EMISSIONS

• COLORADO
• CONNECTICUT
• DELAWARE
• MAINE
• MARYLAND
• MASSACHUSETTS
• MINNESOTA
• NEVADA
• NEW JERSEY
• NEW MEXICO
• NEW YORK
• OREGON
• PENNSYLVANIA
• RHODE ISLAND
• VERMONT AND WASHINGTON STATE REQUIREMENTS

  WHEELS

• 18" (45.7 CM) PAINTED STEEL

  TIRES

• LT275/70R18E ALL-TERRAIN
• BLACKWALL

  LAMPS

• SMOKED AMBER ROOF MARKER
• (LED)

  TIRE

• SPARE LT275/70R18 ALL-TERRAIN
• BLACKWALL

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (2nd): 700
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6600
• Gross Axle Wt Rating - Rear (lbs): 6390
• Curb Weight - Front (lbs): 3777
• Curb Weight - Rear (lbs): 2644
• Gross Vehicle Weight Rating Cap (lbs): 10650
• Gross Vehicle Weight Rating Cap (lbs): 10250
• Gross Combined Wt Rating (lbs): 24500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4575
• Maximum Trailering Capacity (lbs): 14500
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.0 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QF6
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QF6
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZYG
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT275/70R18
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT275/70R18
• Rear Tire Size: LT245/75R17
• Spare Tire Size: LT275/70R18
• Spare Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 142
• Length, Overall (in): 235.59
• Width, Max w/o mirrors (in): 81.75
• Height, Overall (in): 79.94
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.19
• Ground Clearance, Rear (in): 10.19
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 43.11
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.06
• Front Hip Room (in): 60.9
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Regular Cab Pickup
• Body Code: E63
